Vantec UGT-M2670 M.2 PCIe Gen3x2 B+M Key To 5 Ports SATA III Expansion Card | UGT-M2670

Vantec UGT-M2670 M.2 PCIe Gen3x2 B+M Key To 5 Ports SATA III Expansion Card

Vantec

SKU#: CA-M2670 | MFR#: UGT-M2670

Features

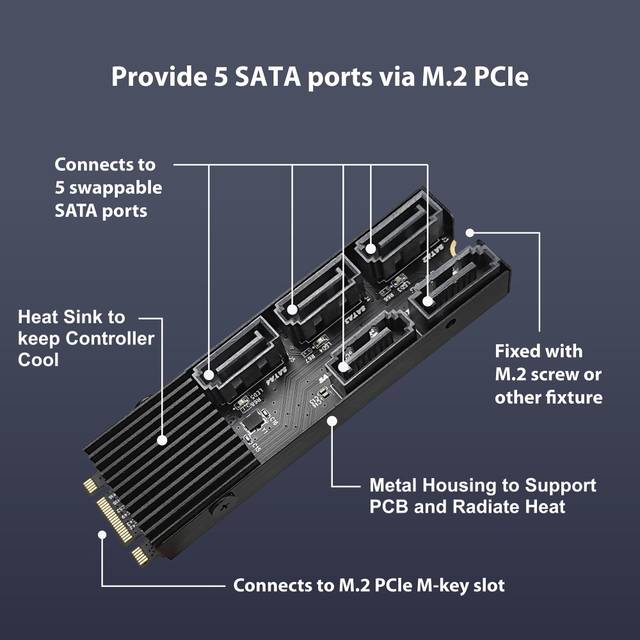

- Provide 5 SATA ports via M.2 PCIe

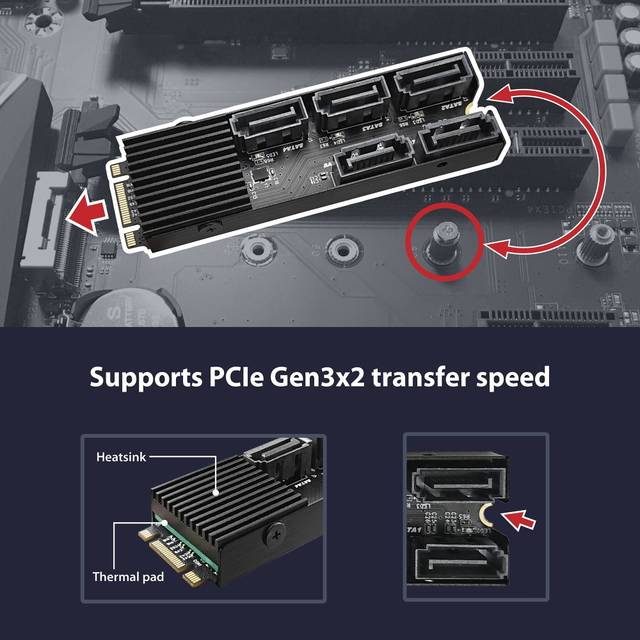

- Supports PCIe Gen3x2 transfer speed

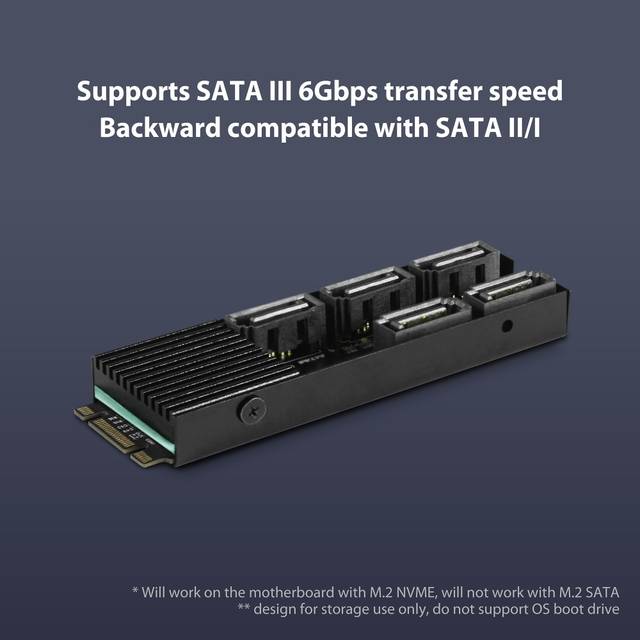

- Supports SATA III 6Gbps transfer speed (Backward compatible with SATA II/I)
- Supports SATA plug and play function

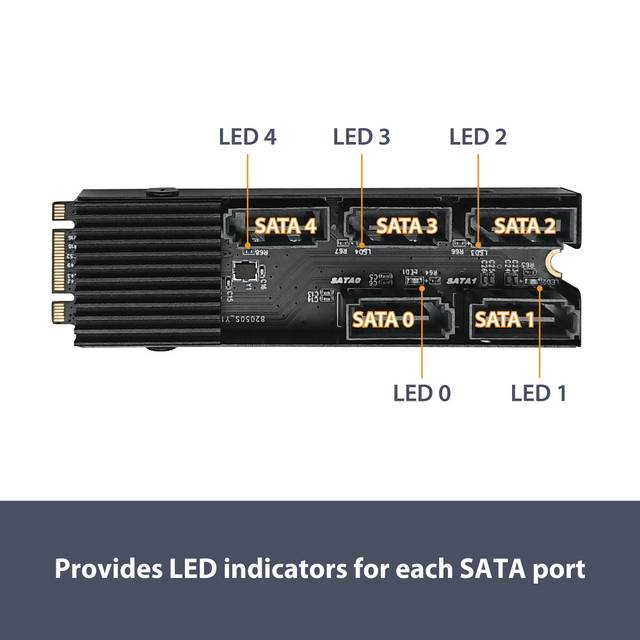

- Provides LED indicators for each SATA port
M.2 interface: M.2 NVMe (PCI Express 3.0x2)
Device Connectors: Five SATA III (6Gbps) ports
Power Supply: M.2 interface powered, no external power needed
OS Support: Windows 11, 10 (32bit or 64bit); Linux OS with Latest Kernel
Environmental
- Operating Temperature: 0 C to +45 C
- Operating Humidity: 10% to 85 % RH (no condensation)
- Storage Temperature: -10 C to +70 C
- Storage Humidity: 5% to 90% RH (no condensation)
System Requirements
- M.2 NVMe interface on motherboard
- Newer OS (Windows 11/10)
- Preferred, but not required, motherboard with newer core chipset
- NOTE: Will work on motherboard with M.2 NVME, will not work with M.2 SATA
Whats Included: 1 x M.2 PCIe Gen3x2 B+M Key to 5 ports SATA III Expansion Card, 1 x Quick Install Guide
Country of Origin: Taiwan

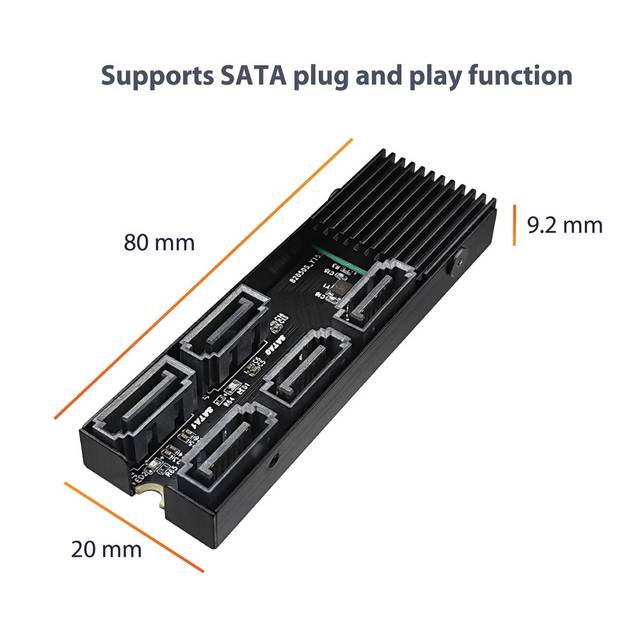

Item Dimensions (LxWxH): 3.18 x 1.00 x 0.42 inches / 80.8 x 25.4 x 10.6 mm
Item Weight: 0.81 oz. / 23 g
Package Dimensions (LxWxH): 5.43 x 2.36 x 0.94 inches / 138 x 60 x 24 mm
Package Weight: 1.62 oz / 46 g
