Product Details

GAMEMAX GM Series GM-600 Modular Power Supply, Semi-Modular, 80 Plus Bronze, Black | GM-600 MODULAR

GAMEMAX GM Series GM-600 Modular Power Supply, Semi-Modular, 80 Plus Bronze, Black

GAMEMAX

SKU#: GM-GM600MB | MFR#: GM-600 MODULAR

Feature
- Fewer cables allow it to be tidy and better airflow inside your case
- High efficiency with multi-protection gives the user durability and total confidence in your next system build
- Built-in APFC (Active Power Factor Correction) rates
- Smart Fully-modular design offers easier cable management
- Up to 85%+ efficiency with official 80Plus certificate
- Mesh sleeves reduce the blockage of system air flow
- Silent 14cm fan with optimized thermal fan speed control
- Powerful single +12V rail offers compatible DC output
- Specifications are subject to change without notice
- Products and models may vary depending on your region
- Contact your local retailer for more information
Connectors
- 20+4 Pin MB Connectors: 1
- 4+4 Pin CPU Connectors: 1
- 6+2 Pin PCI-e Connectors: 2
- SATA Connectors: 3
- PATA 4 Pin Connectors: 2
PSU Specifications
- AC Input: 100-240 VAC 15-5A 50-60Hz
- DC Output Max: 600W
- +3.3V;+5V;+12V;-12V;+5VSB
- 18A;18A;40A;0.5A;2.5A
Detailed Specifications
- Dimensions: 160mm x 85mm x 150mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 15-5A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC (>.99)
- Power Good Signal: 100-500 ms
- Hold Up Time: >10ms
- Efficiency: > 82% (85% max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP/ OTP / OCP / OLP / OPP / SCP
- Power: 600W
- Operation Temperature: 0-40C
- Safety: CE / FCC / CB

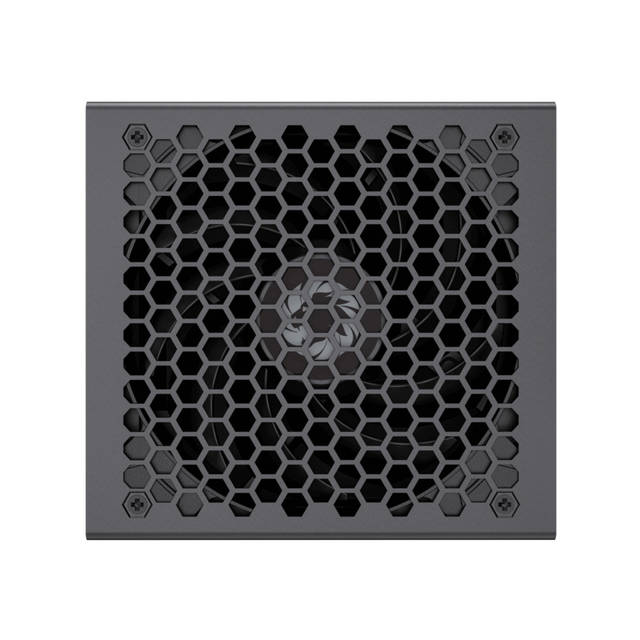

- Cooling: 140mm Ultra Silent Fan
- Noise: <25dBa
- 80 Plus Certified: Yes - 80 Plus Bronze
General Specifications
- Manufacturer Part Number: GM-600
- Has Mains Plug: No
- Colour: Black
- What's In The Box:
- Power Supply
- Screws
- Manual
- 5 x Output Cables
- 2 x Cable Ties
- Unit (Product) Dimensions (mm): 160mm x 85mm x 150mm (W x H x D)
- Packaging Dimensions (mm): 335mm x 242mm x 122mm (W x H x D)
